AdBlue Storage Systems and Equipment

AdBlue Storage Systems

The chemical characteristics of AdBlue require special storage and handling equipment. AdBlue storage systems can be manufactured from 1350 litres up to a capacity of 15000 litres, plus all our AdBlue tanks incorporate specialised AdBlue pumps suitable for aqueous solution, and are manufactured to fulfil the highest demands of quality, stability and longevity. Fuel Storage Systems will be pleased to offer advice and consultation with regards to bespoke Adblue installations.


How AdBlue works?

To comply with Euro 6 regulations, most new diesel-powered vehicles built since 2006 use SCR technology to inject tiny quantities of AdBlue into the vehicles exhaust. When this solution combines with exhaust emissions, it produces harmless nitrogen and oxygen by breaking down the harmful mono-nitrogen oxides in diesel exhausts. This technology has been used in busses and HGV'S for a long time, so its effectiveness has been proven and its reliability is better than ever.

What is AdBlue?

AdBlue is a non-toxic liquid that’s colourless in appearance and is a solution of water and urea – a substance found in urine. In AdBlue, the urea is exceptionally pure and is of a greater grade than that used in cosmetics, glue or fertilisers. Similarly, the water is de-mineralised, which is far cleaner than water from the tap.When purchasing AdBlue, you should check it meets the correct standards, so look for the ISO 22241 number on the packaging. This could also appear as ISO-22241-1, ISO-22241-2, ISO-22241-3. This will ensure the AdBlue doesn’t damage your car’s SCR catalyst – a costly repair. Assuming your AdBlue meets these specifications, one brand of AdBlue should be pretty much the same as another, in the same way that diesel fuel is fundamentally the same from one retailer to another.

AdBlue Dispensing Equipment

Alpha Adblue Dispenser

FSS Adblue Dispenser

  • This version of the ALPHA has been designed for use with AdBlue®.
  • Dispenser option for use with submersible pumps.
  • Meter ‑ Turbine, +/‑ 1%.
  • Cabinet: Stainless steel.
  • Display: LCD display with back light.
  • Flow rate 10- 100 LPM.
  • Front nozzle holster available.
  • Dimensions: 1245mm H x 550mm W x 530mm D.
  • 2 year parts warranty.

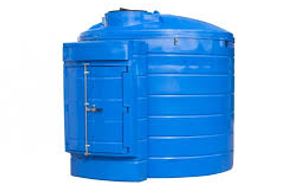

Adblue Storage Tanks

Adblue Storage Tanks

  • Plastic PE construction.
  • UV stable
  • Capacity 1,000 - 15,000 litres.
  • FMS electronic fuel level monitoring system.
  • 75 LPM submersible turbine pump.
  • 4 M hose with automatic nozzle.
  • Digital flow meter.
  • Mechanical overfill prevention valve.
  • 2” dry break fill connection.
  • Lockable cabinet
  • 600 mm manway access.
  • Product grade label.
  • 2” Vent.
  • Colour: Blue (other colour are available on request)

Adblue Pump

Adblue Pump

  • Suitable with AdBlue®.
  • Self priming diaphragm Adblue pumps & bypass valve.
  • Flow rate 35 LPM.
  • Power Supply 230V or 110V
  • C/w switch & 1.8m mains cable.
  • Weatherproof to IP55 for outdoor use.


Submersible Adblue Pump

Adblue Submersible Pump

  • Suitable with Diesel or BiD-diesel up to B100, AdBlue® or clean water.
  • Flow rate 75 LPM
  • 1 ½" Female BSP inlet port.
  • This pump fits inside storage tanks. 0.75 HP. Continuously rated.
  • Stainless steel housing. Height: 430mm x Diameter: 130mm.
  • Max immersion: 20m. Max temperature of liquid: 35°C.
  • Pumps solids with a max diameter of 2mm.
  • Minimum liquid height: 100mm (required to start pumping).

ZVA Adblue Nozzle

ZVA Adblue Dispensing Nozzle

  • Flow rate 10 - 40 LPM
  • Choose with or without safety break swivel.
  • Automatically shuts off the flow of fuel when the vehicle tank is full.
  • Suitable with AdBlue®. Approved for resale.
  • 3 position stay open latch, which may be disabled if required.

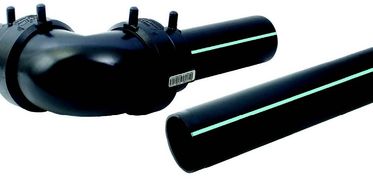

Durapipe PLX AdBlue Pipe

Durapipe PLX Blue Adblue Pipework

  • Material: HDPE100.
  • Single or secondary contained.
  • Stainless steel transitions.
  • Pressure or suction system.
  • Primary pipe pressure rating 10 bar.
  • Secondary pipe pressure rating 4 bar.
  • Corrosion resistant.
  • UV stable suitable for above ground applications.
  • 30-year design life.
  • Approvals: EN14125 Standard Pipe.

Downloads

Alpha Adblue (pdf)

Download

Adble Storage Tanks Brochure (pdf)

Download

Durapipe PLX Blue (pdf)

Download
