Fuel Pipework Systems

Single & Secondary Contained Petrol Pipework

Fuel Storage Systems offer a complete range of services with design, installation and modification of various fuel pipework systems in above and below ground applications for a number of industries including Petrol Filling Stations, Rail, Marine, MOD and Commercial/Industrial applications. With options been available in single or twinned wall fuel pipework which can be constantly monitored by our range of class 1 leak detection systems.



Our highly experienced installation teams have the expertise and the know-how to complete any size of fuel system project from start to completion. With all our installation engineers been trained to the highest standards and having completed specific training courses for all our petrol pipe systems.


Brugg Pipe Systems

Brugg safety pipe systems can be manufactured in continuous lengths of over 1,000 metres (depending on size and type of construction). This means that installation times are extremely quick and cost effective compared to standard welded pipe in pipe constructions. Many kilometres of Brugg secondary contained pipe can be installed in a few days, saving man power costs and site/ factory downtime.

Durapipe PLX

Durapipe PLX is a system of dedicated fusion welded pipework for the safe transfer of fuels and their vapours. Suitable for use with petroleum, including ethanol (E85), diesel, bio-diesel and fuel oils. Durapipe PLX plastic pipe offers the ultimate in environmental protection with maximum protection against permeation and leak free joints for transferring fuel.

Fuel Pipework Range

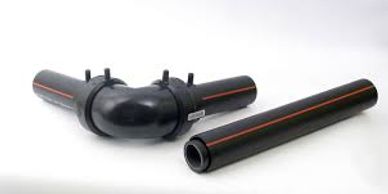

Durapipe PLX Pipework

Durapipe PLX Secondary Contained Petrol Pipe

  • Material: HDPE100 with permutation barrier layer.
  • Primary pipe pressure rating 10 bar.
  • Secondary pipe pressure rating 4 bar.
  • Suitable for Petrol, Diesel, Gasoil, Bio Diesel up to B100, Ethanol up to E85, Kerosene and Adblue.
  • Corrosion resistant.
  • UV stable suitable for above ground applications.
  • 30-year design life.
  • Approvals: EN14125 Standard Pipe.

KPS Pipework

KPS Bunded Fuel Pipe

  • Material: HDPE100 with permutation barrier layer.
  • Primary pipe pressure rating 10 bar.
  • Secondary pipe pressure rating 3.4 bar. Suitable for Petrol, Diesel, Gasoil, Bio Diesel up to B100, Ethanol up to E85, Kerosene and Adblue.
  • Corrosion resistant.
  • Approvals: EN14125 Standard Pipe & UL 971.

Geberit Mapress Pipework

Geberit Mapress Pipework

Geberit Mapress Stainless Fuel Pipe

  • Stainless Steel 1.4401 (BS316) in accordance with DIN EN 10088.
  •  Suitable for Petrol, Diesel, Gasoil, Bio Diesel up to B100, Ethanol, Kerosene and Adblue.
  • FKM blue seal is suitable for a maximum operating pressure of 16 Bar.
  • Press fit indicator.

Brugg Secon-X

Brugg Secon-X

Geberit Mapress Pipework

Brugg Secon-X Safety Pipework


Brugg Secon-X is a secondary containment pipe with the primary pipe constructed from 1.4571 (316Ti) Stainless Steel and an outer PE jacket. The construction allows the space between the primary pipe and the PE jacket to be monitored for leakage.

  • Primary pipe pressure rating 10 bar.
  • Suitable for Petrol, Diesel, Gasoil, Bio Diesel up to B100, Kerosene and Adblue.
  • Corrosion proof with PE-LD casing.

Brugg FSR

Brugg Secon-X

UPP Pipework

Brugg FSR Bunded Pipework


Brugg FSR comprises of a convoluted inner pipe of 316 stainless steel (din1.4404) with a convoluted outer pipe of 304 stainless steel (din 1.4301) contained within a PE protective jacket.

  • Primary pipe pressure rating 25 bar.
  • Suitable for Petrol, Diesel, Gasoil, Bio Diesel up to B100, Kerosene and Adblue.
  • Corrosion proof with PE-LD casing.

UPP Pipework

Brugg Secon-X

UPP Pipework

UPP HDPE Fusion Pipework

  •  Material: HDPE100 with Natural, un-pigmented EVOH permutation barrier layer.
  • Primary pipe pressure rating 10 bar.
  • Secondary pipe pressure rating 3.4 bar.
  •  Suitable for Petrol, Diesel, Gasoil, Bio Diesel up to B100, Kerosene, Ethanol up to E85 and Adblue.
  • Corrosion resistant.
  • Approvals: EN14125 Standard Pipe.

Omega Flex DoubleTrac

Omega Flex DoubleTrac

Omega Flex DoubleTrac

DoubleTrac OmegaFlex Pipework

  • Primary pipe pressure rating 150 PSI.
  • Secondary pipe pressure rating 75 PSI.
  • Suitable for Petrol, Diesel, Gasoil, Bio Diesel up to B100, Kerosene and Adblue.
  • End connections available in brass, alloy or stainless.
  • Corrosion proof with PE-LD casing.
  • Salt water resistant ideal for marina installations.
  • UV stable.

FlexRite

Omega Flex DoubleTrac

Omega Flex DoubleTrac

EnviroFlex

  • Material: Polyethylene with Kynar PVDF barrier layer
  • Suitable for Petrol, Diesel, Gasoil, Bio Diesel up to B100, Kerosene and Adblue.
  • Lengths up to 300 M
  • Stainless steel swagged ends.
  • Single or secondary contained.
  • Approvals: EN14125 approved

Threaded Steel

Omega Flex DoubleTrac

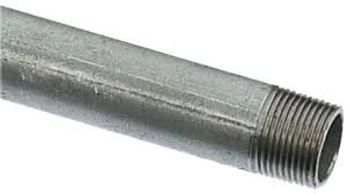

Threaded Steel

Threaded Steel Pipework Installations

  • Galvanised, black iron or stainless.
  • 6.5 M lengths.
  • Approvals: BS 1387, BS 1387

Downloads

Durapipe PLX (pdf)

Download

KPS (pdf)

Download

Geberit Mapress (pdf)

Download

Brugg Secon - X (pdf)

Download

Brugg FSR (pdf)

Download

UPP (pdf)

Download

Omega Flex DoubleTrac (pdf)

Download

Flexrite (pdf)

Download
