Fuel Storage Tanks

Turn-Key Fuel Tank Installations

Fuel Storage Systems offer a full turn-key solution for fuel storage tanks. We have the experience and the expertise to deal with any size project from start to completion with all our fuel storage tank installations conforming to the Environment Agency & DEFRA Oil Storage Regulations 2015.

Above Ground Fuel Storage Tanks

We supply steel bunded bulk fuel storage tanks which can accommodate any customer request, including one-off and bespoke requirements. All our fuel storage tanks are constructed in mild steel to BS EN/10 025 & manufactured to BS799 Part 5, which are fully bunded to comply with Environment Agency & DEFRA Oil Storage Regulations 2015.


Benefits: Above ground fuel storage tanks have a lower upfront cost, because they require significantly less excavation and back filling meaning they are much less expensive to install than below ground fuel tank. They can be checked for leaks visually and can be more easily accessed for repairs making them the preferred choice for the storage of fuels.



Below Ground Fuel Storage Tanks

 All our Below Ground Fuel Tank are fully tested and certified to comply with BS.EN.12285-1:2003 specification. On completion of manufacture they are externally blast cleaned to SA 2.5 followed by a coating of solvent-free polyurethane. The coating receives a 100% pin-hole high voltage spark detection test to confirm complete paint coverage.


Benefits: Underground fuel storage tanks are a good choice for anyone wishing to maximise their property use because they are underground they free up more land for productive uses and do not visually impact your landscape.They reduce the fire and explosion risks, USTs are also naturally protected from vandalism or theft.

Fuel Storage Tanks

Steel Bunded Fuel Storage Tanks

Above Ground Petrol Storage Tanks

Above Ground Petrol Storage Tanks

Steel Bunded Fuel Storage Tanks



  • Fuel Storage Tanks constructed to BS 799 part 5
  • Storage tank capacity 500 - 150,000 litres.
  • Gas Oil, Kerosene, Bio Fuels and Diesel storage tanks.
  • Lockable fill point cabinet with drip tray.
  • Various gauge options available.
  • Fill point with ball valve, check valve and non-drip cap.
  • Grade label with safe working capacity.
  • Mechanical overfill prevention valve.
  • Vent with flame arrestor mesh.
  • 600 mm diameter manway access.
  • Lifting lugs.
  • Paint specification: Powder coated using a zinc rich primer and a polyester top coat. Colour: RAL 6005 Moss Green. (other colours are available on request)

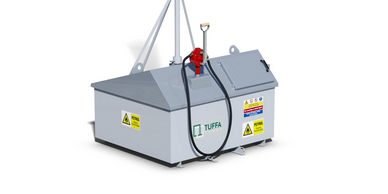

Above Ground Petrol Storage Tanks

Above Ground Petrol Storage Tanks

Above Ground Petrol Storage Tanks

Above Ground Petrol Storage Tank



  • Manufactured to meet the requirements of UK HSG 51,146,176 & the blue book
  • Storage tank capacity 950 - 3,000 litres.
  • 0.8 M overall height to receive gravity fill deliveries.
  • Integrally bunded.
  • Tank bolt down points.
  • Earth strap & rod.
  • Safety signage
  • 4.5 M vent pipe with flame arrested vent cap.
  • Capacities up to 50,000 litre available on request.

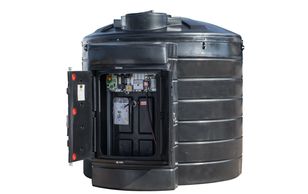

Bunded Plastic Fuel Tanks

Above Ground Petrol Storage Tanks

Fire Rated Fuel Storage Tanks

Bunded Plastic Fuel Tank



  • Plastic PE construction Fuel Storage Tanks .
  • UV stable
  • Storage tank capacity 1,000 - 15,000 litres.
  • Gas Oil, Kerosene, Bio Fuels, Adblue and Diesel storage tanks.
  • FMS electronic fuel level monitoring system.
  • 60 LPM submersible turbine pump.
  • 4 M hose with automatic nozzle.
  • 10-micron particle filter.
  • Digital flow meter.
  • Mechanical overfill prevention valve.
  • 2” BSP fill point with non-drip cap and chain.
  • Lockable cabinet
  • 600 mm manway access.
  • Product grade label.
  • 2” Vent.
  • Colour: Black (other colour are available on request)

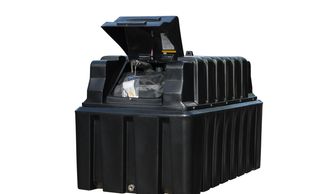

Fire Rated Fuel Storage Tanks

Below Ground Fuel Storage Tanks

Fire Rated Fuel Storage Tanks

Fire Rated Oil Tank


  • Steel or plastic PE construction Bulk Fuel Tanks  .
  • Storage tank capacity 1,000 - 150,000 litres.
  • Various equipment available.
  • Independently tested to BS476: Part 22: 1987
  • Independently tested to BS476 (Warrington Fire Research Centre)
  • Meets Section J 5.4 of Building Regulations, Table 5.1 for Fire Protection for Oil Storage Tanks
  • LABC (Local Authority Building Control) system approval

Find out more

Below Ground Fuel Storage Tanks

Below Ground Fuel Storage Tanks

Below Ground Fuel Storage Tanks

Below Ground Fuel Storage Tank



  • Fuel tanks constructed to EN 12285-1
  • Storage tank capacity 2,000 - 120,000 litres.
  • Suitable for Petrol, Diesel, Gasoil, Bio-Diesel up to B100, Adblue & Kerosene.
  • Deuma automated assembly for maximum concentricity and straightness.
  • Single or multi-compartment.
  • Both skins tested and certified on completion.
  • 600mm diameter manway with selection of internally threaded BSP sockets.
  • 1.2m² lower access shaft. (for access chamber)
  • GRP dipstick. (calibrated in litres)
  • Dry over-pressure leak detection kit.
  • Holding-Down Straps.
  • External finish: Blast cleaned and painted with one coat Endoprene Polyurethane at 800-micron DFT.

Fuel Fill Point Cabinets

Below Ground Fuel Storage Tanks

Below Ground Fuel Storage Tanks

Fuel Fill Point Cabinets


  •  Wall or floor mounted.
  • Integrated drip tray with sight glass (drip tray holds 13.6L)
  • Hinged door with lockable handle.
  • Internal mounting plate.
  • Ball valve, non-return valve and non-drip fill cap.
  • Bespoke options available on request.


Find out more

Downloads

Steel Fuel Tank Brochure (pdf)

Download

Plastic Fuel Station Brochure (pdf)

Download

Heating Oil Tank Brochure (pdf)

Download

Fire Rated Tank Brochure (pdf)

Download

Underground Tank Brochure (pdf)

Download

Fill Point Cabinets (pdf)

Download
