Fuel Dispensing Pumps & Equipment

DSEAR Regulations

Under the new CLP regulations 2015, Diesel & Gas Oil has been reclassified as a flammable liquid in the U.K and is now covered by DSEAR The Dangerous Substances and Explosive Atmospheres Regulations 2002. All our fuel dispensing pumps are now ATEX certified to comply with the new regulations.


There are a number of products that now meet the criteria for classification as flammable which did not do so before in the new EU CPL Regulations. This is partly because the upper flash point for classification as a flammable liquid has been increased from 55 °C to 60 °C. The changes mean that for example, diesel, gas oil and light heating oils are now classified as flammable liquids. However, many substances classified may not normally present a significant risk of fire when stored. Businesses should adopt a proportionate approach in considering whether there are any justifiable further measures needed when assessing there current systems.

Fuel Dispenser Range

The range of Alpha, Merridale, Petrotec and C-Series fuel dispensing pumps, we offer have their frames and panels constructed from stainless steel, offering full protection from there environment which provides a long lasting life in the harshest of conditions. We offer various options with fuel transfer pump flow rates up to 180 LPM, options for integrated fuel management systems & diesel or petrol pumps which suits a number of industries including:

Retail, Marine, Aviation, Rail & Commercial Fuel Pumps



FE Petro Submersible Fuel Pumps

Franklin Fuelling has contributed many innovative product designs to the petroleum industry, including the highest performing submersible pump systems available. We can offer 3/4 to 4 HP to meet the needs of high volume customers and variable speed provides constant flow in peak business hours, as well as efficiency in off peak hours. Intelligent pump controllers like the smart controller and variable frequency controller provide unmatched user interface and fault detection capabilities to keep your system operational.

Fuel Dispensing Equipment

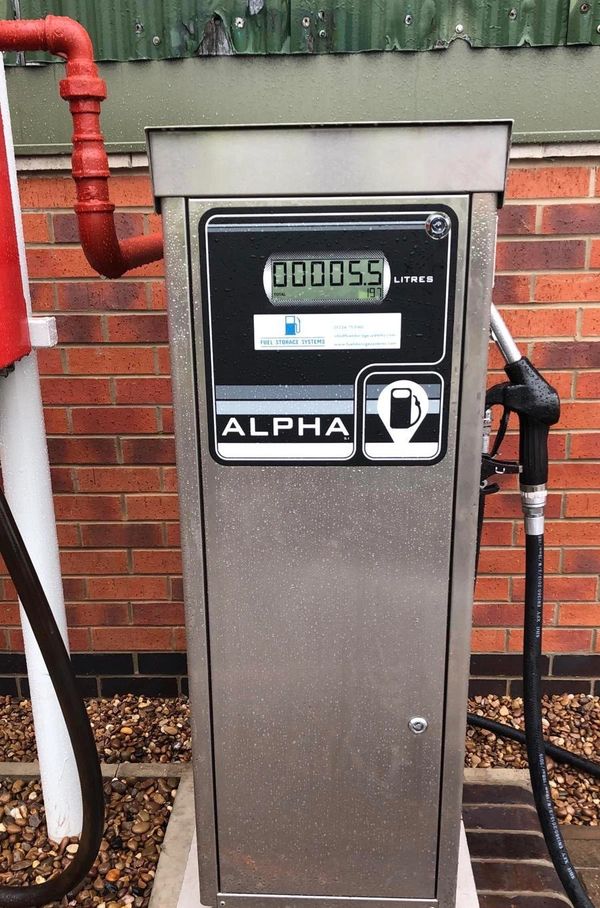

Alpha Diesel Dispenser

FE Petro Submersible Pumps

Alpha Diesel Dispenser

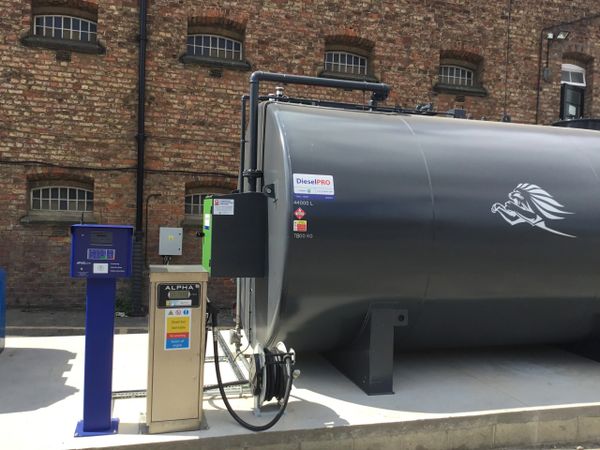

Alpha Commercial Fuel Pump

  • Stainless steel construction.
  • LCD display with LED back light.
  • Fuel pump speeds: 50,70 or 90 litres per minute.
  • Suitable for pumping Diesel, Gas Oil, Adblue & Bio Diesel up to B30.
  • Available as mono or twin fuel pump
  • High accuracy 4 piston meter +/- 0.25%.
  • Heavy duty fuel pump unit with air separator.
  • Integral pulse transmitter 10:1 or 100:1 for connection to FMS.
  • ZVA automatic nozzle.
  • 4M steel braided hose with safety breakaway coupling
  • 2-year parts warranty.
  • Dimensions: 1245mm H x 550mm W x 530mm D.  ·
  • ATEX approved for use with Diesel Pumps - Certificate Number: CML 15ATEX9183.

Alpha Petrol Dispenser

FE Petro Submersible Pumps

Alpha Diesel Dispenser

Alpha Petrol Dispenser

  • Stainless steel construction.
  • LCD display with LED back light.
  • Fuel pump speeds: 50 or 70 litres per minute.
  • Suitable for pumping Petrol.
  • Available as mono or twin fuel pump
  • High accuracy 4 piston meter +/- 0.25%.
  • Heavy duty fuel pump unit with air separator.
  • Integral pulse transmitter 10:1 or 100:1 for connection to FMS.
  • ZVA automatic nozzle.
  • 4M steel braided hose with safety breakaway coupling
  • 2-year parts warranty.
  • Dimensions: 1450mm H x 550mm W x 490mm D.  ·
  • ATEX approved - Certificate Number: CML 15ATEX9183.

FE Petro Submersible Pumps

FE Petro Submersible Pumps

FE Petro Submersible Pumps

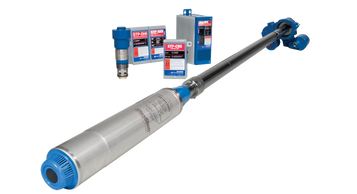

FE Petro Submersible Pump

  • 3/4 - 4 Hp fixed speed models are available in variable length and fixed length options.
  • Variable speed option available on request.
  • Suitable for Petrol, Diesel, Gas Oil, Kerosene, Bio Fuels & Adblue
  • Check valve: 2 ¾" diameter fluorocarbon seal constructed with cast aluminum body and steel backing washer.
  • Pressure relief valve: available in four pressure relief settings, integral to check valve. Standard model relieves at 40 psi and resets above 35 psi.
  • Syphon: venturi-type syphon primer supplied with every submersible. Syphon check valve and secondary syphon sold separately.
  • Air eliminator: every submersible includes a tank return path with one-way check valve to provide active air elimination.
  • Electrical disconnect: electrical yoke for positive contractor disconnect during service.
  • cULus listed approval.

C-Series Fuel Dispenser

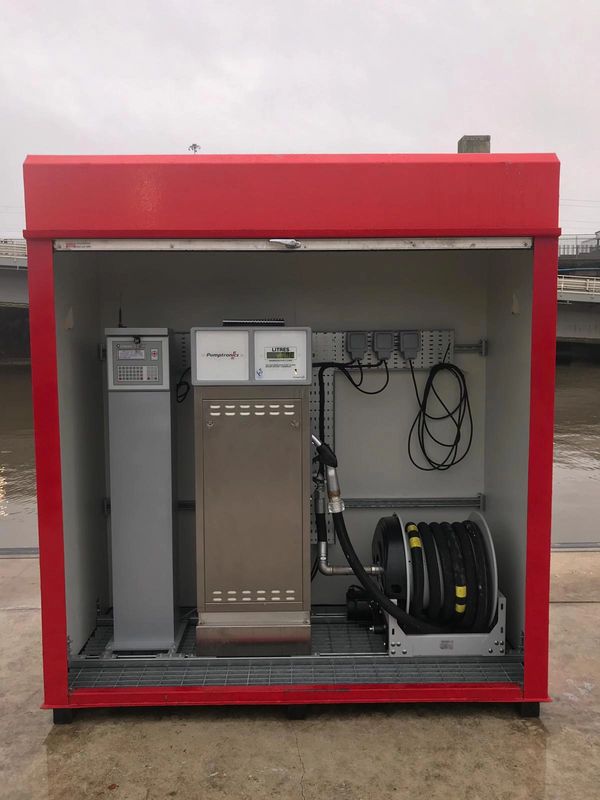

C-Series 180 LPM Fuel Dispenser

FE Petro Submersible Pumps

C-Series Fuel Dispenser

  • Single or twin sided 25mm illuminated digital retail displays
  • Can display Cash & Volume
  • Available as mono or twin
  • Suitable for pumping Diesel, Petrol Gas Oil, Adblue & Bio Diesel.
  • Pumping unit with integral air separation (not included in dispenser format)
  • Solenoid valve
  • Approved automatic nozzles with safety break
  • Infra-red management control
  • 3.3 Elaflex hose (high hose/black asstandard, green for unleaded)
  • Stainless steel construction
  • Single or three-phase motors (115v/230v/380v)
  • Integral nozzle locking (no padlocks required)
  • Interface options include Pulse, Serial, Gilbarco 2 Wire
  • High hose mast option
  • Manufactured to EN13617-1 SIRA Certificate number 05ATEX9095
  • Approved by UK Weights & Measures (attendant operated or fuel monitoring system) and OIML
  • Measuring Instruments Directive (MID) approved
  • Ministry of Defence Design and Maintenance Guide 14 (DMG14)
  • 12 months warranty

C-Series 180 LPM Fuel Dispenser

C-Series 180 LPM Fuel Dispenser

C-Series 180 LPM Fuel Dispenser

180 LPM High Flow Fuel Pump

  • Single or twin sided 25mm illuminated digital retail
  • Can displays cash and volume
  • Suitable for pumping Diesel and Gas Oil.
  • 2 x pumping units with integral air separation (not included in dispenser format)
  • 1 ½” solenoid valve
  • Approved automatic nozzle with swivel
  • Infra-red management control
  • 3.3 Elaflex hose (black colour as standard)
  • Stainless steel construction
  • Single or three-phase motors (115v/230v/380v)
  • Integral nozzle locking (no padlocks required)
  • Interface options include Pulse, Serial, Gilbarco 2 Wire
  • Single pick-up (2” supply pipe work recommended)
  • Manufactured to EN13617-1 SIRA Certificate number 05ATEX9095
  • Approved by UK Weights & Measures (attendant operated or fuel monitoring system)
  • Measuring Instrument Directive plus OIML approved
  • Ministry of Defence Design and Maintenance Guide
  • 14 (DMG14)
  • 12 months warranty


C-Series Fuel Debowser

C-Series 180 LPM Fuel Dispenser

C-Series 180 LPM Fuel Dispenser

C-Series Fuel Debowser


  • Single or twin sided 25mm illuminated digital commercial display (volume only)
  • Pumping unit with integral air separation
  • Retrieval rate of approximately 8-10 LPM (dependent of the size hosed used)
  • Manufactured to EN13617-1 SIRA certificate number 05ATEX9095
  • Mono and twin units available capable of extracting either petrol or diesel
  • Water and particulate filtration system
  • Start/stop activation switch
  • Infra-red management system
  • Interface options include Pulse, Serial, Gilbarco 2 Wire
  • In-line sight glass to view fuel flow
  • Adaptor flex fitted at end of hose to allow fuel retrieval from the tank filler neck
  • 12 months warranty

Merridale MX Fuel Pump

Merridale MX Adblue Dispenser

Merridale MX Fuel Pump

Merridale MX Fuel Pump

  •  50, 70, 90 and 120 Litres per minute versions available
  • High accuracy metering to 0.25% of throughput
  • Pumps and meters tested to 7.5 million litres of throughput
  • Built to withstand rugged fleet use and harsh environmental conditions
  • Designed and manufactured for ease of installation and maintenance
  • Proven 10 year plus product
  • Up to B100 Biodiesel option compatibility
  • Stainless steel cabinet

Merridale MX Twin Pump

Merridale MX Adblue Dispenser

Merridale MX Fuel Pump

Merridale MX Twin Pump

  •  Dual product fuelling
  • 50, 70, 90 and 120 Litres per minute versions available
  • High accuracy metering to 0.25% of throughput
  • Pumps and meters tested to 7.5 million litres of throughput
  • Built to withstand rugged fleet use and harsh environmental condition
  • Designed and manufactured for ease of installation and maintenance
  • Proven 10 year plus product
  • Up to B100 Biodiesel option compatibility

Merridale MX Adblue Dispenser

Merridale MX Adblue Dispenser

Merridale MX Adblue Dispenser

  •  Suitable for aqueous urea Diesel Exhaust Fluids (AdBlue/AUS32)
  • Available as a pump or dispenser
  • Available in twin format coupled with a diesel pump
  • Robust stainless-steel construction
  • Simple to install and maintain
  • Long-life design (minimum 10 years)
  • Pump delivery speed approx 35 ltr/min
  • Electronic calibration
  • Metering accuracy ± 0.5%
  • Totaliser viewable on main display
  • Fuel management interface

Petrotec Mono Fuel Pump

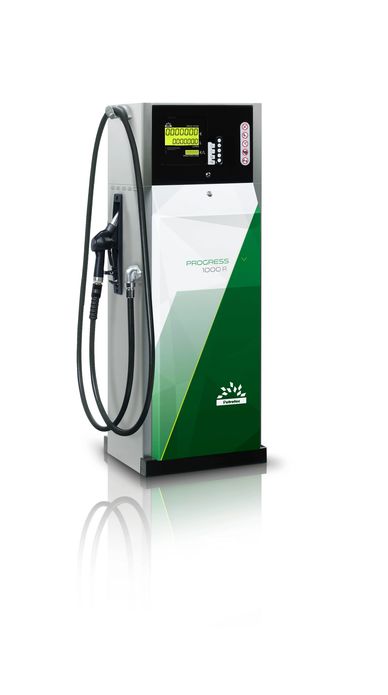

Petrotec Diesel Dispenser

  • Frame: Galvanised steel; double coated painting.
  • Housing: Stainless steel.
  • Panels: Aluminium; double coated painting.
  • High Performance compact Gear Pump, Petrotec Model “P-pump” or Submerged.
  • Positive Displacement Petrotec Model “P-meter”. High accuracy volumetric
  • with integrated pulse generator and electronic calibration.
  • Reusable stainless steel, 100 m mesh at the inlet.
  • Eexd, single or tree phase, 50/60 Hz with built in thermal protection.
  • eMC2 Counter: Scaled down version of eMC2 calculator, specifically adapted to industrial usage.
  • According to the corresponding flow rates: 16, 19, 21 and 25 mm diameter.
  • EN1360 or EN13483 (Vapour Recovery approved).
  • Automatic ZVA2 or others.
  • Petrol | Diesel | Biodiesel | Biodiesel Blends | Ethanol (E85)
  • 40, 80 and 130 L/min
  • ATEX

Petrotec Twin Product Fuel Pump

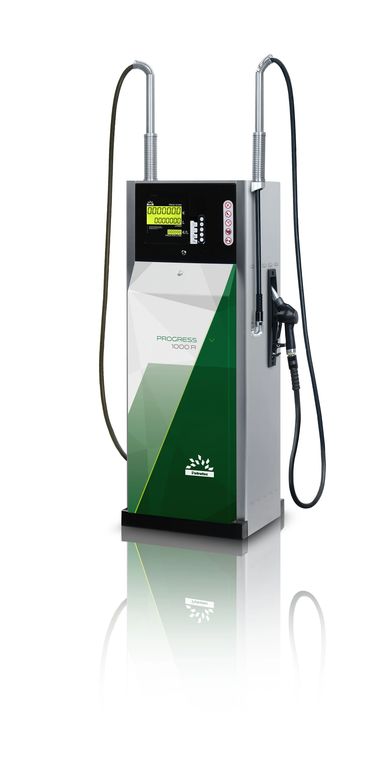

Petrotec Twin Diesel Pump

  •  Frame: Galvanised steel; double coated painting.
  • Housing: Stainless steel.
  • Panels: Aluminium; double coated painting.
  • High Performance compact Gear Pump, Petrotec Model “P-pump” or Submerged.
  • Positive Displacement Petrotec Model “P-meter”. High accuracy volumetric
  • with integrated pulse generator and electronic calibration.
  • Reusable stainless steel, 100 m mesh at the inlet.
  • Eexd, single or tree phase, 50/60 Hz with built in thermal protection.
  • eMC2 Counter: Scaled down version of eMC2 calculator, specifically adapted to industrial usage.
  • According to the corresponding flow rates: 16, 19, 21 and 25 mm diameter.
  • EN1360 or EN13483 (Vapour Recovery approved).
  • Automatic ZVA2 or others.
  • Petrol | Diesel | Biodiesel | Biodiesel Blends | Ethanol (E85)
  • 40, 80 and 130 L/min
  • ATEX

Petrotec Adblue Pump

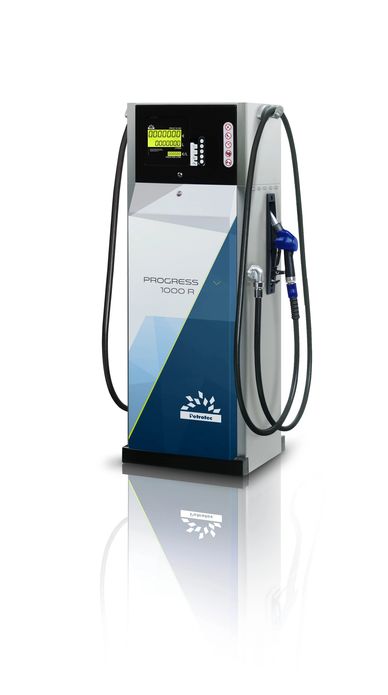

Petrotec Adblue Pumps

 This P1000R configuration, with two hoses and no heating, allows this entry-level model to supply AUS32 to both Light Vehicles (10L/ min) and Heavy Vehicles (40L/ min) one at a time.


It has the same core technologies as the premium dispenser range with the same levels of performance, robustness and reliability. It is the best option, for those who are looking for a more flexible solution and standard features.

Pressure Regulating/Anti Siphon Valves

Pressure Regulating/Anti Siphon Valves

Pressure Regulating/Anti Siphon Valves

Fuel Pump Pressure Regulating - Anti Siphon Vales



  • Suitable with Diesel, Petrol & Bio Diesel up to B30.
  • Flow rates up to 110 LPM
  • 1 1/2" inlet/outlet
  • Protects above ground storage tanks from siphoning.
  • Inlet strainer mesh.
  • Max tank height from ground level 7.5m.
  • Can be mounted horizontally or vertically.
  • High flow 180 LPM 2" option available on request.

ZVA Fuel Dispenser Nozzles

Pressure Regulating/Anti Siphon Valves

Pressure Regulating/Anti Siphon Valves

ZVA Delivery Fuel Pump Nozzles




  • ATEX Certified.
  • Automatically shuts off the flow of fuel when the vehicle tank is full.
  • Flow rates from 14-180 LPM
  • Suitable with Petrol, Diesel, Biodiesel, Adblue & Kerosene.
  • 1" or 1 1/2" BSPF swivel inlet. Approved for resale.
  • 3 position stay open latch which may be disabled if required.

Fuel Pump Hose Reels

Pressure Regulating/Anti Siphon Valves

Submersible Fuel Pumps

Fuel Pump Hose Reels




  • Suitable with Petrol & Diesel.
  • Self retracting.
  • Steel construction, powder coated finish.
  • Stainless Steel option available.
  • Reels have Goodyear steel braided hose fitted (reel ATEX hose EN1360).
  • Can be used with pumps up to 90L/min (20% flow restriction).
  • High flow and powered rewind options available on request.

Submersible Fuel Pumps

Duplex Fuel Transfer Sets

Submersible Fuel Pumps

Submersible Fuel Pump

  • Suitable with diesel or biodiesel up to B100, AdBlue® or clean water.
  • 1 ½" Female BSP inlet port.
  • This pump fits inside storage tanks. 0.75 HP. Continuously rated.
  • Stainless steel housing. Height: 430mm x Diameter: 130mm.
  • Max immersion: 20m. Max temperature of liquid: 35°C.
  • Pumps solids with a max diameter of 2mm.
  • Minimum liquid height: 100mm (required to start pumping).

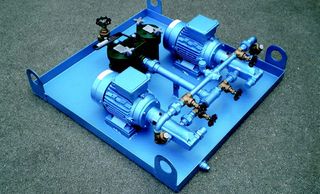

Duplex Fuel Transfer Sets

Duplex Fuel Transfer Sets

Duplex Fuel Transfer Sets

Duplex Fuel Transfer Sets

  • Robust motorised pumps
  • TEFC electric motors for 3 phase or single phase
  • supply. 50Hz and 60Hz
  • Eexd Atex pump sets for hazardous areas
  • Auto changeover control panels
  • Duplex filters available

FIND OUT MORE

Fill-Rite ATEX Fuel Pumps

Duplex Fuel Transfer Sets

Duplex Fuel Transfer Sets

Fillrite Fuel Dispensing Pump

  • Cast Iron Construction
  • 30 Minute Duty Cycle
  • UL/cUL Certified Motor
  • Petrol, Diesel, B20, E-15, and Kerosene Compatible
  • 2” NPT Bung Mount

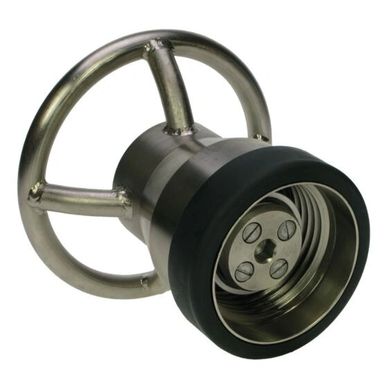

Flyte Rail Coupling

Flyte Rail Coupling

Flyte Rail Coupling

  • Interchangeable with most existing “flyte” type fuel couplers.
  • High impact steel body, corrosion resistant coating for long life.
  • Viton seals.
  • Screw connect dry break valve allows safe & easy connection.
  • Valve opens & closes automatically on connection & disconnection.
  • Hex socket fitting allows fast & easy installation.
  • Heavy duty forged handle gives good operator control.
  • Quick fit replacement inner cartridges available, no special tools required, eliminates the need for a repair service.
  • Improved handle design.

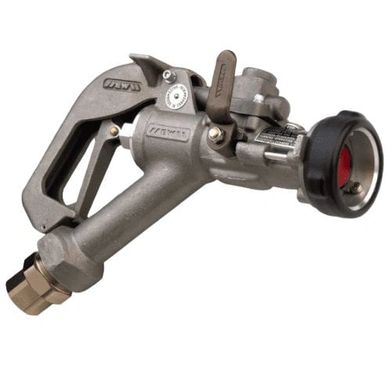

Emco Posilock Nozzle

Flyte Rail Coupling

Emco Posilock Nozzle

  • High-speed fueling to 150 U.S.G.P.M
  • Automatic Shut-off, Automatic Fueling
  • Dry-Break, completely closed-system fueling
  • Nozzle locks mechanically to vehicle
  • Bottom or top fill
  • Fills tanks up to 10’ above dry-break adapter
  • No fuel contamination
  • Heavy duty components
  • Economical initial cost
  • Simple installation on existing fleet
  • Available as option on new equipment

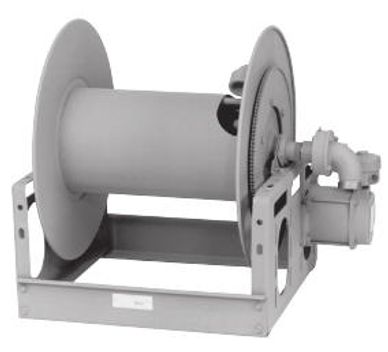

Electric Rewind Hose Reels

Electric Rewind Hose Reels

Electric Rewind Hose Reels

  • To handle single 1" through 1-1/2" I.D. hose.
  • A strong, heavy-duty reel.
  • Gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic or compressed air motor.
  • Optional auxiliary crank rewind for power rewind reels.
  • Choose EP or EPJ option.
  • Comet brake, standard on power rewind without auxiliary crank.
  • 90° ball bearing swivel joint with 1-1/2" female BSP threads and 2" victaulic groove.
  • Flanged riser with 1-1/2" female NPT threads.
  • Other sizes and/or threads can be furnished and must be specified.
  • Inlet, outlet riser, hub assembly are steel.
  • Stainless steel, aluminum, at extra cost.
  • Rollers (and their mounting brackets) are available. Must specify roller position.
  • Mounting brackets are necessary.
  • Chain Guard is available upon request, must be specified.
  • Pressures to 600 psi (41 bar)
  • Temperatures from -60°F to +175° F (-51° C to +79° C).
  • Consult factory for other pressures & temps.

Downloads

Fuel Dispensing Pumps

Alpha Mono (pdf)

Download

Alpha Twin (pdf)

Download

Alpha Adblue (pdf)

Download

Alpha Petrol (pdf)

Download

FE Petro Submersible Pumping Systems (pdf)

Download

C-Series Fuel Dispenser (pdf)

Download

C-Series 180 LPM Fuel Dispenser (pdf)

Download

C-Series Fuel Debowser (pdf)

Download

Petrotec Mono (pdf)

Download

Petrotec Twin (pdf)

Download

Duplex Fuel Transfer Sets (pdf)

Download

Fill-Rite ATEX Fuel Pumps (pdf)

Download

Flyte Rail Coupling (pdf)

Download

Posi Lock (pdf)

Download
Merridale  Pumping equipment

Merridale MX Pumping Equipment and FMS

C-Series Petrol Twin Fuel Pumps

C-Series Petrol Twin Pumps

Marine C-Series 180 LPM High Speed Pump

C-Series 180 LPM High Speed Derv Pump

Commercial Alpha Fuel Pump

Hytek Alpha Fuel Pump

Commercial Hytek Alpha Fuel Dispensing Pump

Alpha Fuel Dispensing Pump

The APEA Awards 2021
Environment  Agency

Head Office: 20-22 Hawley Street, Block 2, Pennine Five, Sheffield, S1 2EA


Operations Office: Unit 8, Silverwood Court, Fairfield Park, Manvers, Rotherham, South Yorkshire, S63 5DB




Powered by
