Electric Vehicle Charging

Electric Vehicle Charging



Following the Government statement in July 2017 that the UK will ban the sale of all petrol & diesel cars & vans by 2040, it is inevitable that the use of electric vehicle charging will rise over the coming years.

Electric vehicle sales in the UK increased by 39% in 2016 compared to 2015, with over 100,000 EV’s registered on the road & estimate that this number could rise to 500,000 by 2020. With legislation & environmental concerns, commercial vehicle manufacturers will also be forced to develop lower emission vehicles. Many of these vehicles will be powered by an electric cell or a combination of electric cell & petrol engine (Hybrid) which will require electric vehicle charging stations to be installed. There has been an increase in electric powered commercial vehicles launched in the UK, these range from small vans through to 26 tonne lorries with this increase we will see a rise in fleet EV charging in the UK.


Vehicle Charging Modes

Vehicle Charging Modes

Mode 3 Charging:

Mode 3 charging is the most common method of connection a vehicle to an electric charger in the UK, where the charger is permanently connected to the a.c. supply network.

Type 1 & 2 Charging Plugs:

There are two varieties of charging plug used in the UK. Type 2 is the most common which can handle power up to 22kW & Type 1 that handles power to 7.4kW. All chargers need to be installed in accordance with BS 7671:2008 A3:2015 (IEE Wiring Regulations Seventeenth Edition). It is the responsibility of the installer to claim.

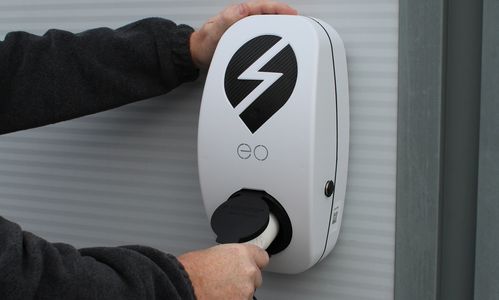

EO Vehicle Chargers

EO Vehicle Chargers

EO Chargers are:

  • Attractive
  • Robust
  • Simple to use
  • Easy to install
  • Use smart technology
  • Weatherproof to IP54 for outdoor use
  • Able to charge any electric vehicle
  • Have a 3 year product warranty

Vehicle Charging Communication Hub

Vehicle Charging Communication Hub

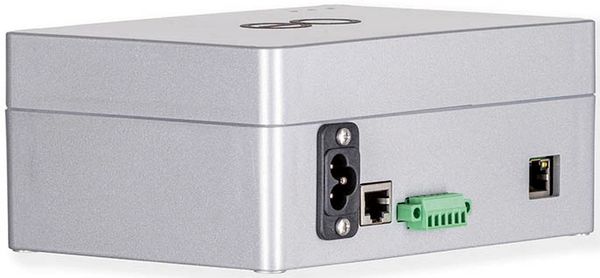

  • The eoHUB is a compact internet connected unit that plugs into a EO “Genius” charger & puts it online (cloud based).
  • The eoHUB when used with eoSoftware allows you to stop & start charge, schedule a charge & monitors all electricity used showing the data via your mobile phone (eoApp) or via the internet (eoCloud).
  • One eoHUB can connect up to 30 “Genius” charger, making installing multiple smart chargers cost effective.


Vehicle Charging Communication Hub

  • The eoHUB monitors a buildings power supply & actively manages the load where multiple chargers are in use.
  • Hardwire internet connection or GSM connection available.
  • The eoHUB comes complete with the first 3 years subscription to eoSoftware.
  • The eoSoftware gives access to the online data portal making the mobile phone app (eoApp) & the online (eoCloud) data visible.

Vehicle Charging Communication Hub

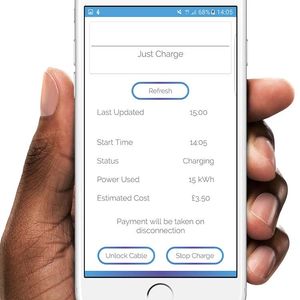

  • Use eoAPP to control your charger from anywhere in the world. Start, stop, pay-for (where installed) & schedule charge from the palm of your hand.

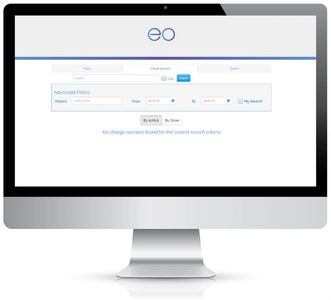

  • Use the cloud on the internet (eoCloud) to monitor your electricity consumption, allow & restrict access to one or many chargers, set pricing & generate revenue (where applicable) & can link home & workplace charging to record benefit-in-kind tax.

EV Charging Equipment

EO Basic Vehicle Charging

Floor Mounted Stainless Post

EO Basic Vehicle Charging

EO Basic Vehicle Charging

The EO “Basic” is a simple, affordable, easy to install, wall mounted electric vehicle charger. Designed, manufactured & tested in the UK, it’s a perfect Mode 3 charging solution for the commercial workplace. Using a universal Type 2 socket, the chargers are suitable for charging all types of electric vehicles & are eligible for OLEV Home & Workplace charging grant. (Please ask for further details). Installation needs to be in accordance with BS 7671:2008 A3:2015 (IEE Wiring Regulations Seventeenth Edition).


  • 7.2kW 32 Amp single phase charger.
  • Approx. charge time 7.2kW (3hr charge).
  • Colour changing LED’s display current charging status.
  • IEC 62196 (Type 2) charging socket.
  • Standby power consumption 3W.
  • Simple installation by slotting the charger into the heavy duty stainless steel wall mounting back plate, secured with security screws.
  • Weatherproof to IP54 for outdoor installation.
  • 3 Year product warranty.
  • Dimensions 360mm (H) x 165mm (W) x 155mm (D).
  • A single or pair of chargers can be installed back to back using the optional stainless steel pedestal (EV.PED).

EO Genius Vehicle Charger

Floor Mounted Stainless Post

EO Basic Vehicle Charging

EO Genius Vehicle Charger

The EO “Genius” is a future proof, smart ready intelligent wall mounted electric vehicle charger. Like the EO “Basic” above, but connected to the EO Hub (EV.HUB), the “Genius” allows you to control your vehicle charging from a mobile app or the cloud, monitor your electrical usage & is eligible for OLEV Workplace charging grant. (Please ask for further details). Designed for charging-up at the workplace, it’s a perfect Mode 3 charging solution. Using a universal Type 2 socket, the chargers are suitable for charging all types of electric vehicles. Installation needs to be in accordance with BS 7671:2008 A3:2015 (IEE Wiring Regulations Seventeenth Edition).


  • Choose from either 7.2kW (32 Amp, 1ph) or 22kW (32 Amp, 3ph).
  • Approx. charge time 7.2kW (3hr charge), 22kW (1hr charge).
  • Colour changing LED’s display current charging status.
  • IEC 62196 (Type 2) charging socket. Standby power consumption 3w.
  • Simple installation by slotting the charger into the heavy duty stainless steel wall mounting back plate, secured with security screws.
  • Weatherproof to IP54 for outdoor installation. 3 Year product warranty.
  • Dimensions 360mm (H) x 165mm (W) x 155mm (D).
  • A single or pair of chargers can be installed back to back using the optional
  • stainless steel pedestal (EV.PED).

Floor Mounted Stainless Post

Floor Mounted Stainless Post

Floor Mounted Stainless Post

Floor Mounted Stainless Post

The integrated floor mounted stainless steel post allows the installation of one or two electric vehicle charges back to back where wall mounting is not possible.


  • Dimensions 1350mm (H) x 100mm (Diameter).
  • Base Plate 300mm x 210mm x 6mm.
  • Slots for electrical cable access.

Type 1 Charging Leads

Type 2 Charging Leads (3 Phase)

Floor Mounted Stainless Post

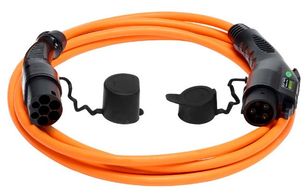

Type 1 Charging Leads

The Type 1 charging leads are for electric vehicles that are equipped with a Mode 3 Type 1-J1772 socket.



  • 32amp single phase allowing charge up to 7.4kw.
  • 5m & 10m, lightweight, flexible, resistant “Run Over” cable.
  • J1772 plug complete with padlock facility.
  • CE & TUV Approved.
  • Leads suitable for use with Kia, Mitsubishi, Nissan, Toyota & Vauxhall vehicles.

Type 2 Charging Leads

Type 2 Charging Leads (3 Phase)

Type 2 Charging Leads (3 Phase)

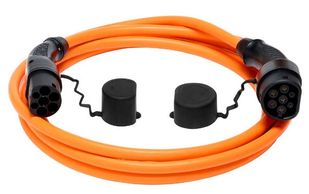

Type 2 Charging Leads

The Type 2 charging leads are the most common charging lead in use & are for electric vehicles that are equipped with a Mode 3 Type 2 IEC62196 socket.


  • 32amp single phase allowing charge up to 7.4kw.
  • 5m & 10m, lightweight, flexible, resistant “Run Over” cable.
  • IEC62196 plug.
  • CE & TUV Approved.
  • Leads suitable for use with Audi, BMW, Mercedes, Volkswagen & Volvo vehicles.

Type 2 Charging Leads (3 Phase)

Type 2 Charging Leads (3 Phase)

Type 2 Charging Leads (3 Phase)

Type 2 Charging Leads (3 Phase)

The Type 2 3 phase power charging leads are designed for fast charging & are for electric vehicles that are equipped with a Mode 3 Type 2 IEC62196 socket.


  • 32amp single phase allowing charge up to 22kw.
  • 5m & 10m, lightweight, flexible, resistant “Run Over” cable.
  • IEC62196 plug.
  • Leads suitable for use with Audi, BMW, Mercedes, Volkswagen & Volvo vehicles.

Downloads

EV Chargers (pdf)

Download
